Ultimate Seats Cup Holder Camera Mount Retrofit
Turns the Ciro drink-holder arm on an Ultimate Seats rear seat into a locking camera mount. Same ball, same collar, new head.
$8.00
This is a digital STL file, delivered as an instant download after checkout. Print as many as you like for yourself, and open the file in any slicer or CAD tool to change the design as you see fit.
License: CC BY-NC-SA 4.0 (remix with attribution, non-commercial)
Fits: The Ciro drink-holder ball arm supplied with Ultimate Seats rear passenger seats (tested on our 2025 Gold Wing 50th Anniversary). The printed head clamps the stock 15.4 mm four-ridge ball with the stock M20x1.5 threaded collar; the cup holder itself stays intact and swaps back anytime.

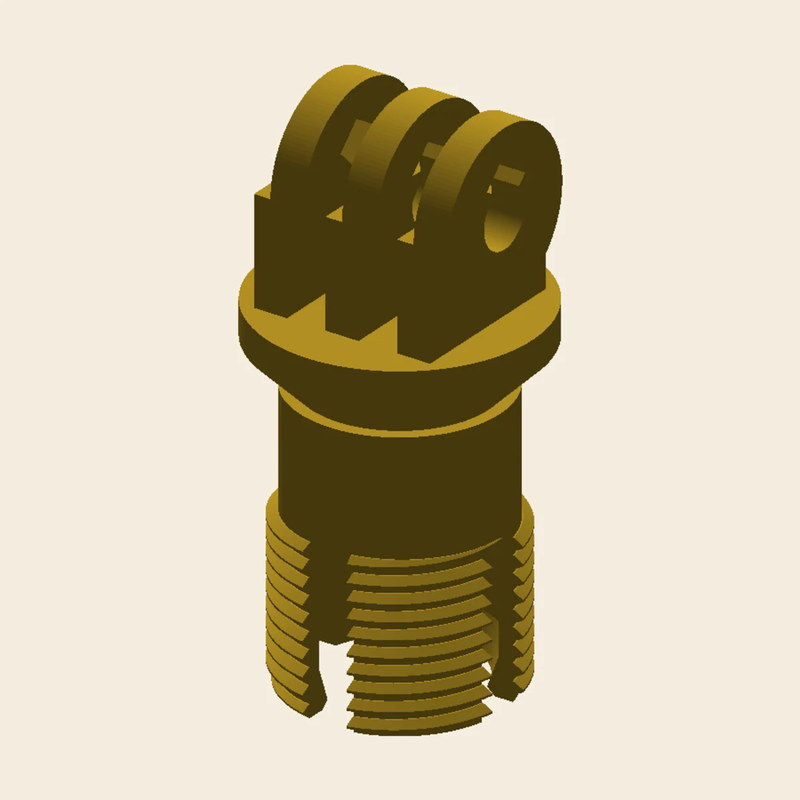

The Ultimate Seats rear cup holder rides on a clever Ciro ball mount: a four-ridge ball, a flexing collet, and a knurled collar that locks the tilt. This head borrows all of that and points a camera with it. The collet is a faithful mate to the original: M20x1.5 external thread proven against the real collar, four keyway slots that lock the ball ridges against rotation, and a deep socket that clicks in like the factory cup. Two tops: a GoPro-standard three-prong (community-standard 9.5 mm hole height) and a 1/4-20 tripod platform that carries a captive steel bolt so printed threads never take the vibration load. Both include a tether eye. Every fit dimension was proven with printed gauge coupons against the actual hardware before this page went up.
Print settings
How we print it
- MaterialASA
- Layer height0.2 mm
- Infill40%
- SupportsNo
- Print timeabout 1 hour per head
Independent aftermarket part. Not affiliated with, endorsed by, or sponsored by Airstream, Rivian, or any vehicle manufacturer. Brand names describe fitment only. Printed parts have limits: check the fit and load rating for your use before you rely on one.
